The 4L60E transmission is one of General Motors’ most popular automatic transmissions, used in millions of Chevrolet, GMC, Cadillac, and other GM vehicles from the early 1990s through the late 2000s. Whether you’re doing routine maintenance, fixing a leak, or planning a full rebuild, one of the most common questions owners ask is: how much transmission fluid does a 4L60E hold?
The answer depends on what type of service you are performing. Let’s dissect it in an understandable and useful manner.

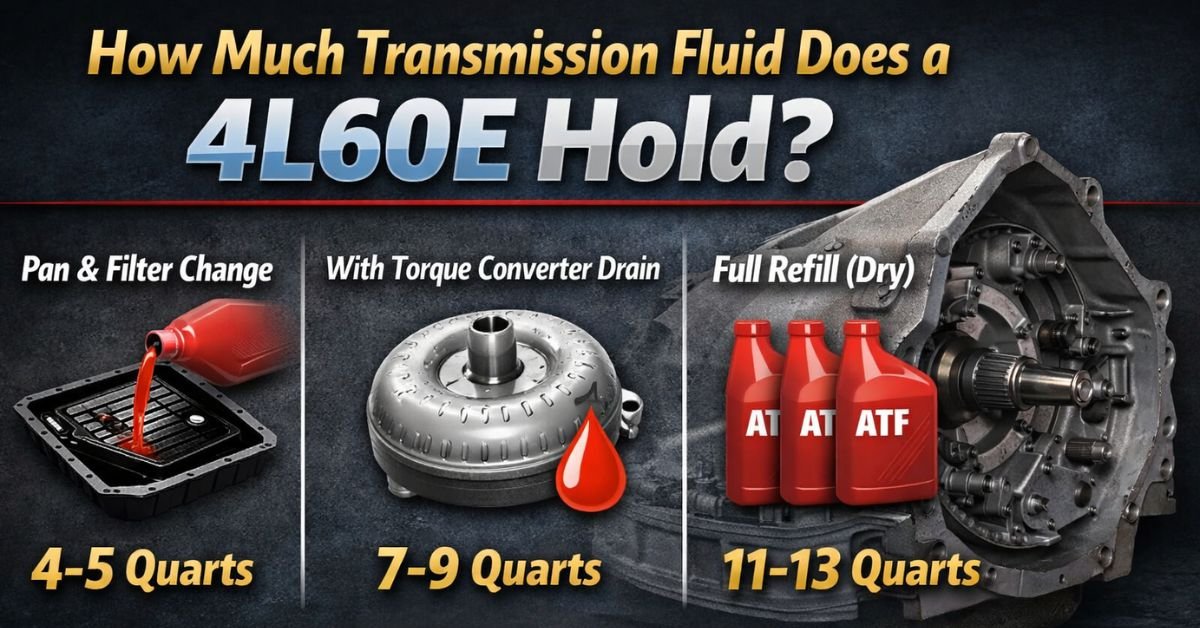

How Much Transmission Fluid Does a 4L60E Hold?
Basic Fluid Capacity of a 4L60E
A fully dry 4L60E transmission—meaning the transmission, torque converter, cooler lines, and cooler are completely empty—holds approximately 11 to 13 quarts of automatic transmission fluid (ATF). This amount applies mostly to rebuilt transmissions or complete replacements.
However, most routine maintenance jobs do not require that much fluid.
Fluid Capacity for a Pan Drop and Filter Change
If you are doing a standard service, which includes:
- Dropping the transmission pan
- Replacing the filter
- Refilling with fresh fluid
You will typically need about 4 to 5 quarts of transmission fluid.
This is because a large amount of fluid remains trapped inside the torque converter, valve body, and cooler lines when only the pan is removed. Many people make the mistake of adding too much fluid after a service, which can cause shifting problems, foaming, or leaks.
Fluid Capacity After Torque Converter Drain
Some 4L60E setups allow the torque converter to be drained, though this is less common and more time-consuming. If you drain both the pan and the torque converter, the transmission will usually require 7 to 9 quarts of fluid.
This method provides a more complete fluid refresh without removing the transmission entirely.
Complete System Refill Capacity
If the transmission is completely empty, such as after:
- A full rebuild
- Transmission replacement
- New torque converter installation
You should expect to add 11 to 13 quarts of ATF. Always add fluid gradually and check the level as the transmission warms up.
Recommended Transmission Fluid Type
Most 4L60E transmissions require DEXRON III or DEXRON VI automatic transmission fluid. Today, DEXRON VI is the most commonly recommended fluid because it is backward-compatible and offers better heat resistance and longer service life.
Always check your vehicle owner’s manual or under-hood sticker to confirm the correct fluid specification.
How to Properly Check the Fluid Level
Checking the fluid level correctly is just as important as knowing the capacity. Follow these steps:
- Park the vehicle on a level surface
- Start the engine and let it warm up
- After changing all the gears, put it in park.
- With the engine running, remove the dipstick
- Clean it, put it back in, and measure the level.
The fluid should be between the “HOT” marks on the dipstick and appear clean and red, not dark or burnt.
Must Read: How Much CFM Do You Need for a Standalone Transmission Fan?
Why Correct Fluid Level Matters
Having the correct amount of transmission fluid is critical for the 4L60E’s performance and lifespan. Too little fluid can cause:
- Slipping gears
- Overheating
- Delayed shifting
- Internal damage
Too much fluid can cause:
- Foaming
- Erratic shifting
- Fluid leaks
- Seal damage
That’s why it’s always best to add fluid slowly and recheck the level multiple times.
Signs Your 4L60E May Be Low on Fluid
Some common symptoms of low transmission fluid include:
- Hard or delayed shifts
- Slipping during acceleration
- Transmission overheating
- Whining or humming noises
If you notice these signs, checking the fluid level should be one of your first steps.
Final Thoughts
So, how much transmission fluid does a 4L60E hold? The short answer is 4–5 quarts for a basic service, 7–9 quarts with torque converter draining, and 11–13 quarts for a completely dry system. Knowing the correct capacity helps prevent costly mistakes and keeps your transmission running smoothly for years to come.
Regular maintenance, proper fluid type, and accurate fluid levels are the keys to extending the life of your 4L60E transmission.
